7-22kW AC EV Charger

This AC EV charger has a high protection level of IP65. It can be wall mounted or base mounted.

Connector Standard: Type 1 / Type 2 / CHAdeMO / GBT

Protokol Komunikasi: OCPP1.6J

Quality Certification: ISO9001, IATF16949, CE, dll.

Aplikasi: Residential Areas, Perusahaan, Commercial Places, Public Parking Lots, dll..

Membagikan

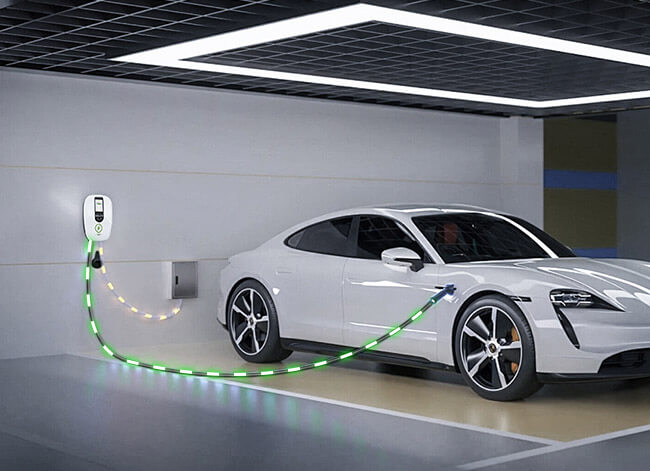

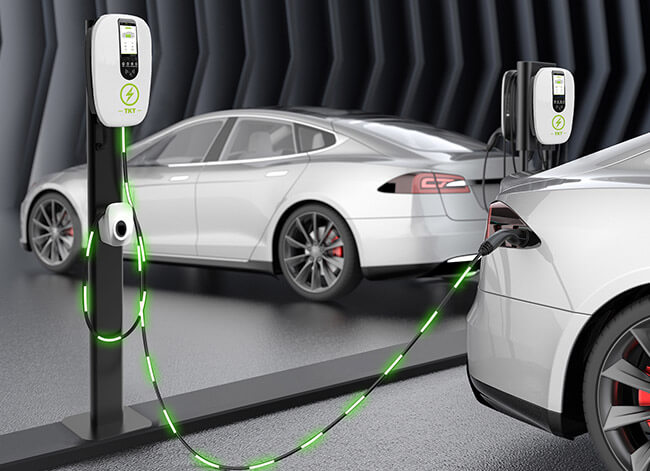

AC EV Charger Overview

This AC EV Charger achieve Level 2 charging speeds (7kw / 11kw / 22kw). This allows you to charge your electric vehicle 5 to 7 times faster compared to a Level 1 charger. We have a wide range of product models to choose from, supporting a variety of installation methods.

We have formed long-term and stable cooperative relations with well-known Chinese enterprises such as Yutong Bus, Zhongtong Bus, BYD Automobile, and Ningde Times. Di pasar internasional, we have formed long-term and stable cooperation with Taiwan Yuandian Technology, Turkey Lumhouse, India Tata, India BYD, dll..



AC EV Charger Specification Table

Please feel free to leave a message Surel:md@tkt-hvac.com and let our experts provide you with expert advice. Kami mendukung kustomisasi OEM.

AC EV Charger

Sertifikat ISO9001, IATF16949, TUV, CE, IEC61851-1,IEC 62196-2
Charging Interface CCS1 Type 1 / CCS2 Type 2 / CHAdeMO Type 1
* 1 atau 2 Opsional
Output Rating 7kW, 32A 11kW, 32A 22kW, 32A
Efisiensi ≥95%
Tegangan Masukan 1-phase 230V ±20% 3-phase 400V ±20%
Standby Power < 5 W
Protection Degree IP 65
Internal Residual
Current Detection
Dual CE Certified RCCB Type-B (30mA AC, 6mA DC)
Over Current Protection Dual MCB 50A
Lightning Protection SPD 40KA
Energy Meter CE & MID Certified
Electrical Protection Over current, short circuit, over voltage, under voltage,
ground fault, lightning surge, over temperature

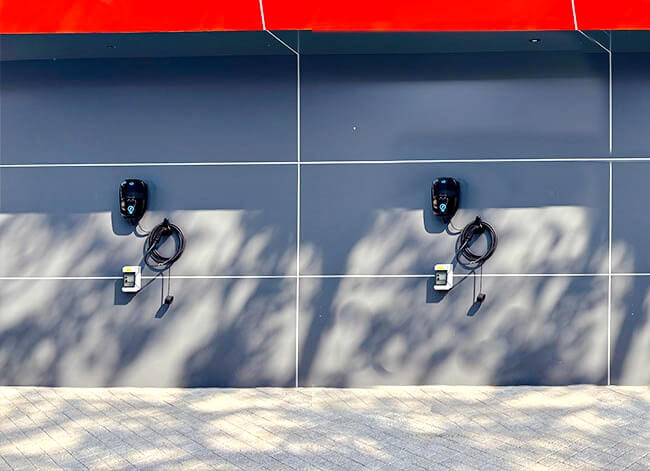

Mounting Type Wall-Mount or Pole-Mount or Floor-Mount
Network Interface 4G / Wi-Fi / Ethernet
OCPP OCPP 1.6J & OCPP 2.0
Status Indicators Standby (Green),Mengisi daya (Flashing Green), Fault (Red), Waring (Flash Red)
Menampilkan 2.8” LCD / 7″ LCD Display
User Authentication RFID / Applets / Credit Card (optional)
Buttons/Switches Physical button for charging connector selection, and also output current adjustment
Operating Temperature (-30℃ to +55℃) in operation, (-40℃ to +80℃) in storage
Bahasa Cina, Bahasa inggris, Rusia, Bahasa lain mendukung penyesuaian

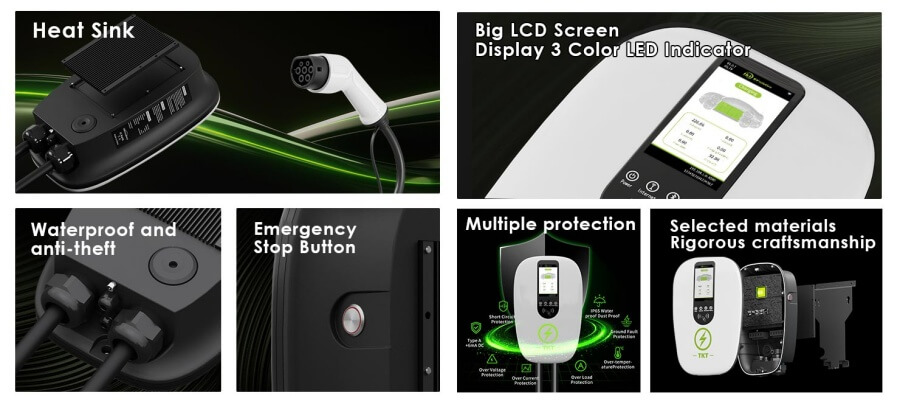

TKT AC EV Charger Advantages

1. Pay attention to safety: safety first

Excellent protection system: TKT charging pile has protection functions such as leakage, overload, surge, tegangan lebih, undervoltage, short circuit, grounding, overheating, lightning strike, and emergency stop. So many protection functions are only for 100% personal safety. No amount of cost is too much.
Strong and durable shell: TKT adopts a combined process of galvanized sheet + multi-layer spraying process + first-level sealing. The equipment can reach IP54/IP55 protection level, moisture-proof, mildew-proof, rain-proof, rust-proof, dust-proof, and flame-retardant. The multi-layer coating process adopts anti-ultraviolet treatment to inhibit the aging of the cabinet and ensure a longer life cycle of the product.

2. Tingkat 2 kecepatan pengisian

We have rich and professional technology accumulation. The AC charging pile product series all reach level 2 charging and charging, with optional output power of 7kW/11kW/22kW. If there are special needs, we support customization.
Untuk merasakan kecepatan pengisian daya lebih intuitif. Saya membuat formulirnya. Saya akan menggunakan 65kwh sebagai contoh. (If you can’t calculate, pakar kami dapat membantu, silakan hubungi ahlinya)

AC EV Charger

Kapasitas Baterai Kendaraan Listrik Kecepatan Pengisian Total Waktu untuk Mengisi Penuh Rata-rata Miles yang Diperoleh Per Jam
65kwh Tingkat 1 kecepatan: 3kw 21.67H 10.5mi / 16.8km
Tingkat 2 kecepatan: 7kw 9.29H 24.5mi / 39.2km
Tingkat 2 kecepatan: 11kw 5.91H 38.5mi / 61.6km
Tingkat 2 kecepatan: 22kw
(Supports 22kw simultaneous charging of 2 cars)
2.95H 77mi / 123.2km
Tingkat 3 kecepatan: 180kw
Pelajari Lebih Lanjut
22menit 630mi / 1008km

Note that actual charging time and increased range may vary depending on vehicle charging efficiency, battery temperature and other factors. These figures are based on ideal conditions.

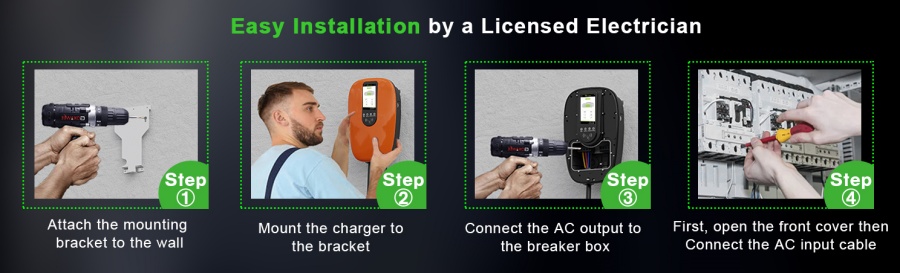

3. Small and easy to install

Professional structural engineers design repeatedly to make the product compact and smaller. Under the same area, more equipment can be placed. The input side only needs to be connected to the grid, and the installation is very convenient.

Instalasi mudah

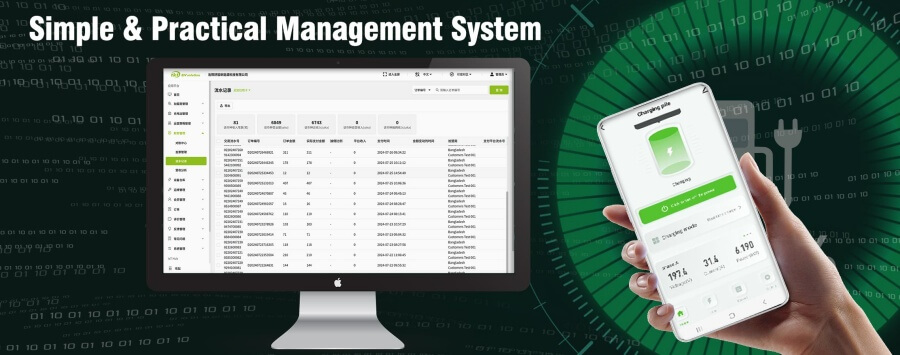

4. Sistem Manajemen Sederhana dan Praktis

Terminal pengguna: layar sentuh LCD berwarna, mendukung banyak bahasa, simple design close to the owner’s use. Berbagai metode pembayaran didukung.
Sisi manajemen: manajemen yang cerdas, pemantauan jarak jauh, cepat dan nyaman. Berbagai statistik jelas. Terhubung dengan mudah ke backend berbasis OCPP mana pun.

Sistem Stasiun Pengisian EV Komersial

5. Intelligent charging system

Supports load balancing and phase rotation functions. It can not only ensure the safe and stable operation of charging equipment, but also optimize the energy utilization efficiency of the power grid. As a leading charging pile manufacturer, itu memiliki lebih dari 10 akumulasi teknologi selama bertahun-tahun, lebih dari 100 paten, mendukung OEM&ODM, memberikan label putih, sistem manajemen yang disesuaikan, dll..

EV Charging patents

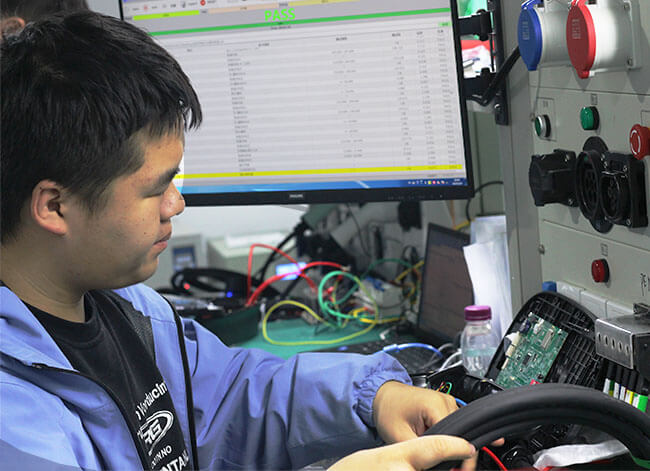

Strict Pre-delivery Inspection

We attach great importance to product quality, and we will conduct up to 16 inspections again before each delivery. These include wiring and routing, insulation resistance checks, circuit breaker and emergency stop function checks, internal power supply DC checks, touch screen checks, thermistor checks, fan function checks, charging history checks, remote communication function checks, and more.

DC EV charger factory inspection

tip produsen AC rv

+ FAQ | Klik untuk lebih lanjut

Q: Can any electric car use a fast or rapid charger?

A: You don’t need to worry about this since electric automobile manufacturers have built-in safety systems to prevent damage from frequent use of rapid or fast charging. Misalnya, the rate of charge can be automatically lowered if the car thinks too much power is being supplied to the battery too often.

Q: What is your warranty for EV chargers?

A: Generally 2 bertahun-tahun. If you have special requirements please get in touch with our customer service.

Q: Can you print our logo on the products?

A: Yes, we support OEM and ODM service, and there will be a MOQ for custom design.

Q: How long is the lead time?

A: The lead time is 30-45 working days, it depends on the quantity and production schedule.
