This TKT DC wall charger on this page comes in two forms: wall-mounted and floor-mounted. It has been designed to be more compact and have a smaller footprint. This allows more to be installed in the same area, and it can charge two electric vehicles at the same time, greatly increasing charging utilization.
Let me give you an example to understand the concept of 80kw. Suppose you have a regular passenger car. Its usual 100km electricity consumption is 10 도 (kwh). For ease of calculation, let’s disregard the conversion rate. A DC 80kw EV charger will charge 80kwh in 1 시간. This is the equivalent of adding 800 kilometers of range to your electric car. If 2 cars are charging at the same time, the range is halved.

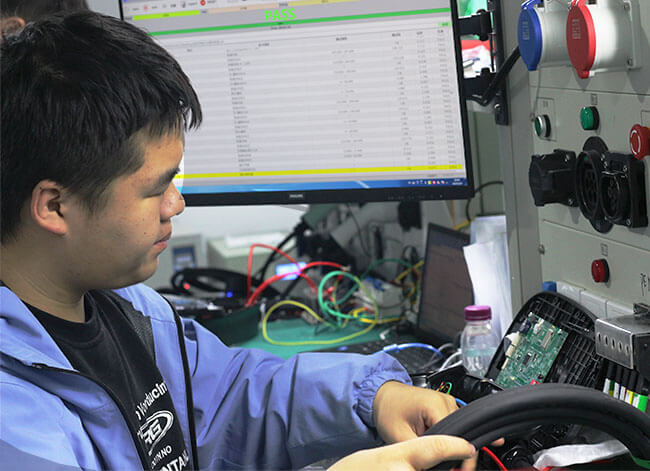

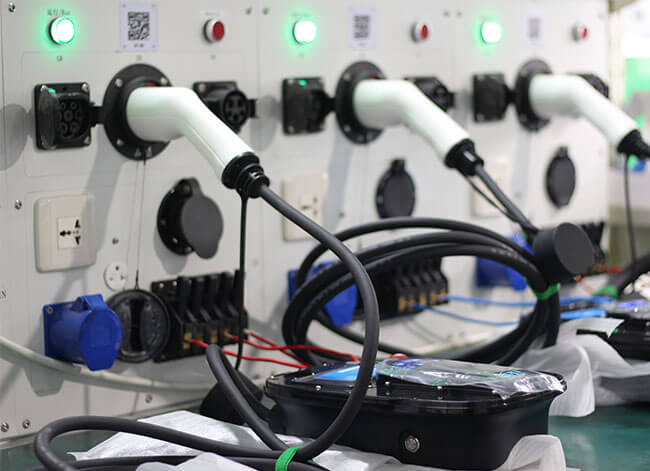

Analogue DC wall charger performance and safety testing
DC wallbox charger is a EV DC charging device that is fixedly installed on the wall. It converts incoming AC power into DC power suitable for charging electric vehicle batteries through a specific circuit structure. This DC charging technology is faster and more efficient.
Its working principle mainly includes, transformer to reduce voltage, rectifier to convert current, filter to eliminate ripple, and regulator to stabilise the output voltage.
1. With integrated OCPP, the charger can be easily connected to our cloud charging management system for easy operation and maintenance.
2. Support RFID reader for user authentication;
3. 8″ LCD touch screen and user-friendly interface.
4. Support wired / wireless network LAN, 4G.
5. Support OCPP 1.6J for online payment and intelligent monitoring.
1. Multiple Protection: comprehensive protection for vehicles, people and equipment.
2. 모듈형 디자인: Upgrading and maintenance are flexible and simple.
3. 고속 충전: For common electric vehicles, charging time only takes 60 에게 90 분.
4. 동적 로드 밸런싱: improve charging efficiency and charging pile utilization.
5. Advanced Management System: easy for customers to operate. Manager data is clear.
6. 수백 개의 특허: excellent quality, affordable price.
Learn more about the 6 advantages
TKT DC Fast Charger have a wide range of charging solutions. The products have been exported to more than 40 countries around the world. 특히, it has formed long-term and stable cooperative relationships with well-known companies such as BYD and Tata Motors.
| 힘 | 20kW | 30kW | 40kW | 60kW | 80kW |
| Charging Outlet | 1 connector | 1 connector | 1 connector | 2 connector | 2 connector |
| 입력 전압 | 3-Phase 400V ±15% AC | ||||
| Output Connector | CCS, 차데모, GBT optional | ||||
| 작동 빈도 | 45~65Hz | ||||
| 역률 | ≥0.99 | ||||
| 능률 | ≥94% | ||||
| 표시하다 | 8” LCD Touch Screen | ||||
| 언어 | 중국인, 영어, 러시아인, 다른 언어는 사용자 정의를 지원합니다 | ||||
| 지불 | Mobile APP / RFID / POS | ||||
| 네트워크 연결 | 4G / Lan | ||||
| 통신 프로토콜 | OCPP1.6J | ||||
| 작동 온도 | -30°C ~ +50°C | ||||
| 보호 | IP54 | ||||
| Dimensions (길이*세로*높이) | 830*459*800 millimetres | ||||
| 케이블 길이 | 5 미터 | ||||
| 자격증 | ISO9001, IATF16949, NTC CE, IEC61851-1, IEC61851-23, IEC61851-21-2, 등. | ||||
1. Charging solutions for large fleets
Common types include public transport, transportation and logistics industries. We have undertaken electric bus charging station in the USA, bus charging station in Canada, taxi car charging station in Australia, electric truck charging station in the UK, 등. Our DC Fast Charger has increased the frequency of vehicle trips by more than 20%.
Click to view more high-definition cases
2. Charging Solutions for All Commercial Locations
With the popularity of electric vehicles, more and more business premises are in need of DC Fast Charger. 예를 들어, Office buildings charging stations, parking lot ev charging stations, ev charging stations for hotels, shopping mall charging station, gas station charger, 등. We have exported to more than 40 countries and regions including Thailand, 인도, 말레이시아, 멕시코, 독일, and France.
Click to view more high-definition cases

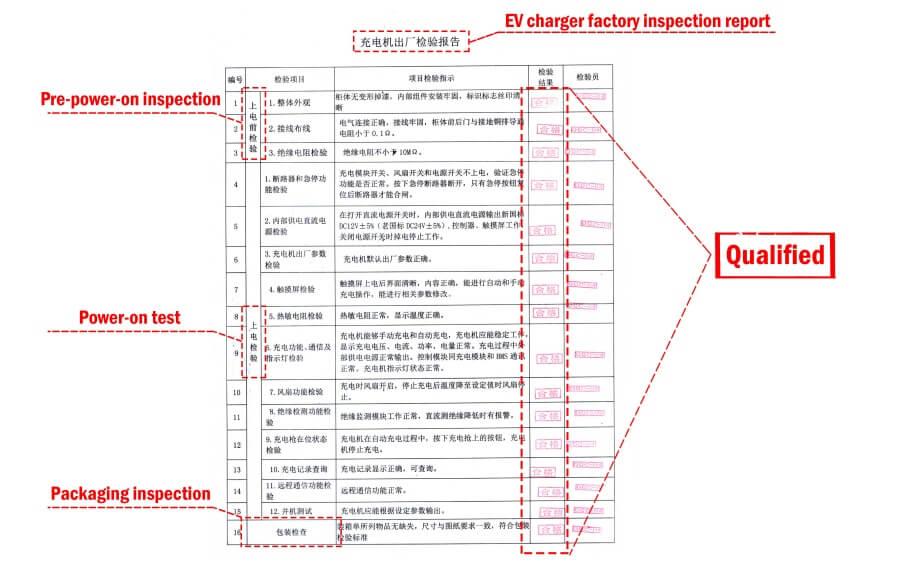

We attach great importance to product quality, and we will conduct up to 16 inspections again before each delivery. These include wiring and routing, insulation resistance checks, circuit breaker and emergency stop function checks, internal power supply DC checks, touch screen checks, thermistor checks, fan function checks, charging history checks, remote communication function checks, 그리고 더.
DC 월박스 충전기, also known as DC charging station, is a charging equipment that is fixedly mounted on a wall or pedestal. It is connected to the AC power grid but outputs DC power so it can quickly charge electric vehicles. Compared with traditional AC charging station, DC wallbox charger can provide higher charging power and faster charging speed.
1. 고속 충전: DC Wallbox Charger directly outputs DC power to charge the battery of the electric vehicle, avoiding the conversion process of converting AC power to DC power, thus greatly shortening the charging time.
2. Wide range of application: Due to the faster charging speed of DC Wallbox Charger, the waiting time of users is greatly reduced. Therefore it is particularly suitable for fast charging scenarios such as public charging stations and highway service areas. And it is downward compatible with all charger areas.
3. Higher charging efficiency: DC Wallbox Charger can intelligently adjust the output voltage and current according to each EV battery and charging strategy through advanced technologies such as dynamic load balancing to achieve optimal charging results.
TKT EV Solution은 2009년에 설립되었습니다. 1998. 지금까지, ISO9001 등 많은 품질 인증을 획득했습니다.:2015, IATF16969:2016, CE, EMI/EMC, 등. 그리고 그 이상을 소유하고 있습니다. 100 관련 특허.
