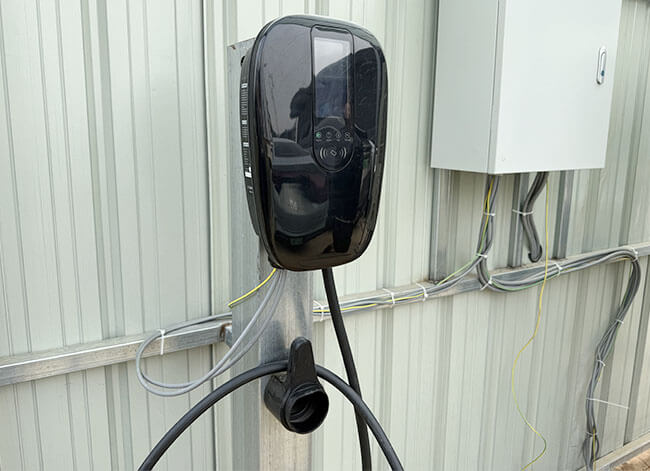

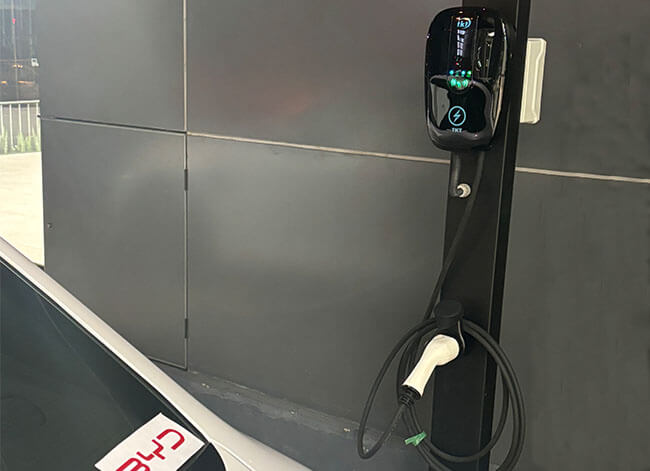

This AC EV charger has a high protection level of IP65. It can be wall mounted or base mounted.
Connector Standard: Type 1 / Type 2 / CHAdeMO / GBT
Communication Protocols: OCPP1.6J
Quality Certification: ISO9001, IATF16949, CE, ect.
Application: Residential Areas, Companies, Commercial Places, Public Parking Lots, etc.

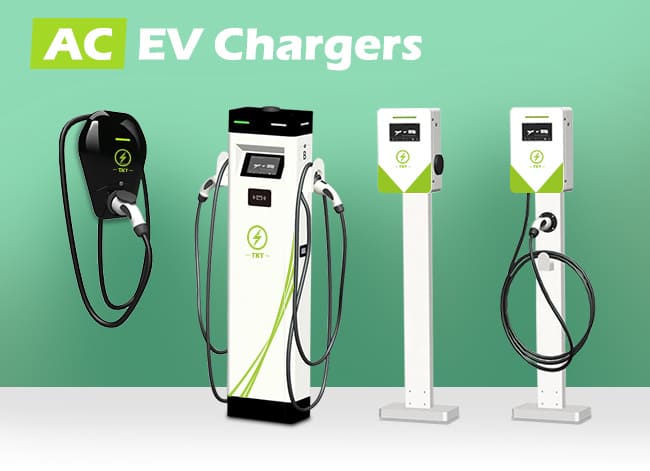

This AC EV Charger achieve Level 2 charging speeds (7kw / 11kw / 22kw). This allows you to charge your electric vehicle 5 to 7 times faster compared to a Level 1 charger. We have a wide range of product models to choose from, supporting a variety of installation methods.
We have formed long-term and stable cooperative relations with well-known Chinese enterprises such as Yutong Bus, Zhongtong Bus, BYD Automobile, and Ningde Times. In the international market, we have formed long-term and stable cooperation with Taiwan Yuandian Technology, Turkey Lumhouse, India Tata, India BYD, etc.
Please feel free to leave a message Email:md@tkt-hvac.com and let our experts provide you with expert advice. We support OEM customisation.
| Certificate | ISO9001, IATF16949, TUV, CE, IEC61851-1,IEC 62196-2 | ||
| Charging Interface | CCS1 Type 1 / CCS2 Type 2 / CHAdeMO Type 1 * 1 or 2 Optional |
||
| Output Rating | 7kW, 32A | 11kW, 32A | 22kW, 32A |
| Efficiency | ≥95% | ||
| Input Voltage | 1-phase 230V ±20% | 3-phase 400V ±20% | |
| Standby Power | < 5 W | ||
| Protection Degree | IP 65 | ||
| Internal Residual Current Detection |
Dual CE Certified RCCB Type-B (30mA AC, 6mA DC) | ||
| Over Current Protection | Dual MCB 50A | ||
| Lightning Protection | SPD 40KA | ||
| Energy Meter | CE & MID Certified | ||
| Electrical Protection | Over current, short circuit, over voltage, under voltage, ground fault, lightning surge, over temperature |
||

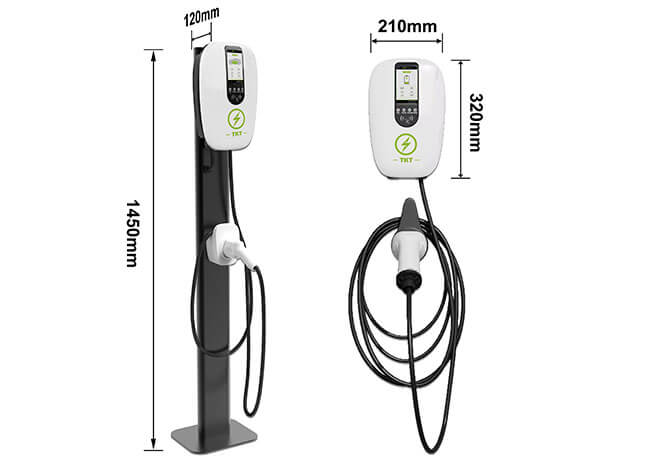

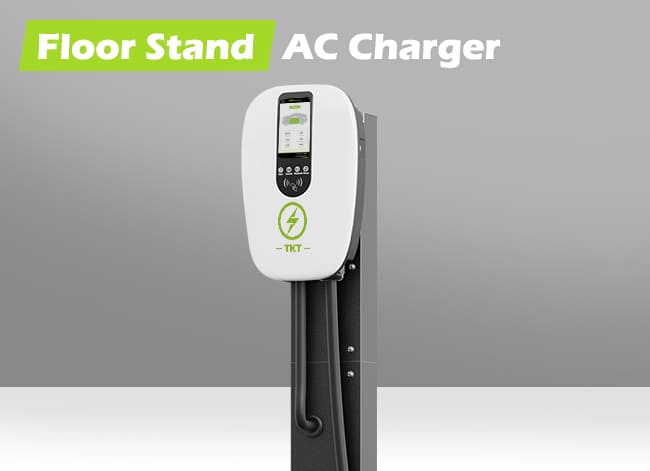

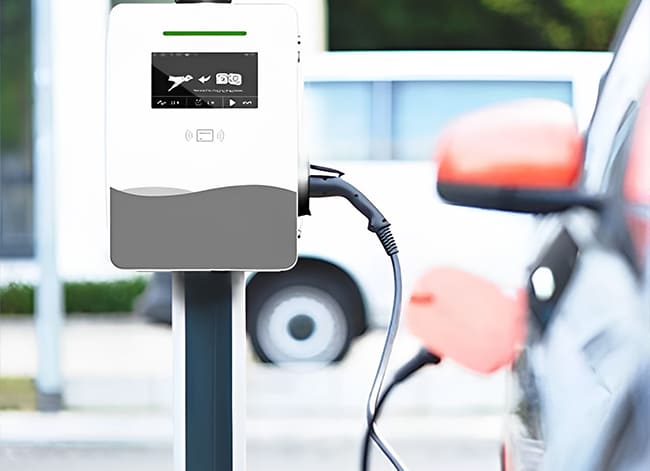

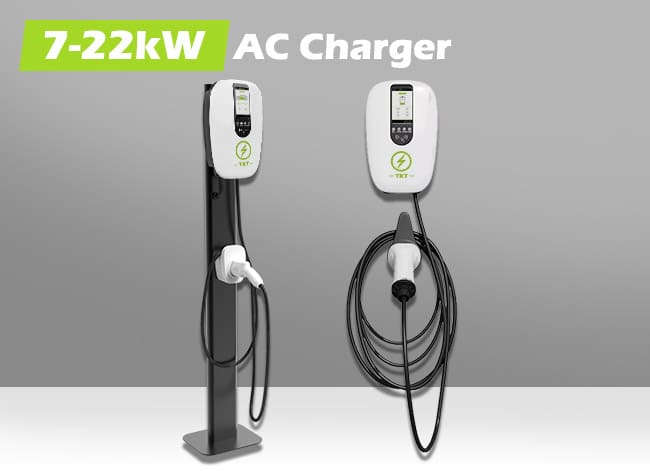

| Mounting Type | Wall-Mount or Pole-Mount or Floor-Mount | ||
| Network Interface | 4G / Wi-Fi / Ethernet | ||
| OCPP | OCPP 1.6J & OCPP 2.0 | ||
| Status Indicators | Standby (Green),Charging (Flashing Green), Fault (Red), Waring (Flash Red) | ||
| Display | 2.8” LCD / 7″ LCD Display | ||
| User Authentication | RFID / Applets / Credit Card (optional) | ||
| Buttons/Switches | Physical button for charging connector selection, and also output current adjustment | ||
| Operating Temperature | (-30℃ to +55℃) in operation, (-40℃ to +80℃) in storage | ||
| Language | Chinese, English, Russian, Other languages support customization | ||

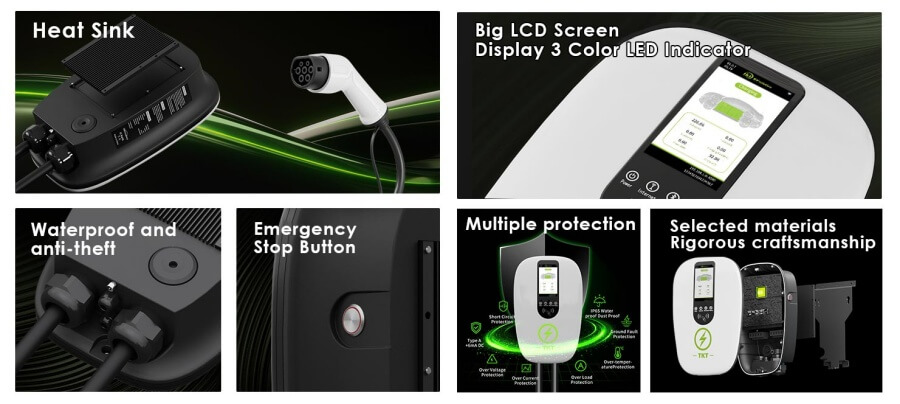

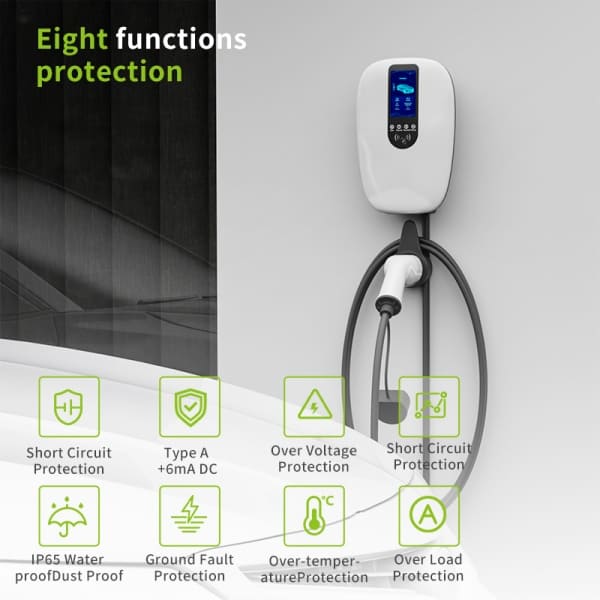

Excellent protection system: TKT charging pile has protection functions such as leakage, overload, surge, overvoltage, undervoltage, short circuit, grounding, overheating, lightning strike, and emergency stop. So many protection functions are only for 100% personal safety. No amount of cost is too much.

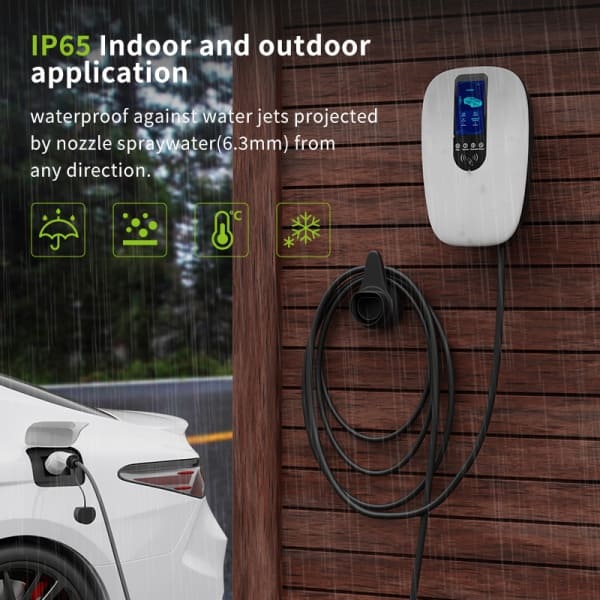

Strong and durable shell: TKT adopts a combined process of galvanized sheet + multi-layer spraying process + first-level sealing. The equipment can reach IP54/IP55 protection level, moisture-proof, mildew-proof, rain-proof, rust-proof, dust-proof, and flame-retardant. The multi-layer coating process adopts anti-ultraviolet treatment to inhibit the aging of the cabinet and ensure a longer life cycle of the product.
We have rich and professional technology accumulation. The AC charging pile product series all reach level 2 charging and charging, with optional output power of 7kW/11kW/22kW. If there are special needs, we support customization.
In order to feel the charging speed more intuitively. I made the form. I will use 65kwh as an example. (If you can’t calculate, our experts can help, please contact the experts)
| Electric Vehicle Battery Capacity | Charging Speed | Total Time to Fully Charge | Average Miles Gained Per Hour |
| 65kwh | Level 1 speed: 3kw | 21.67h | 10.5mi / 16.8km |
| Level 2 speed: 7kw | 9.29h | 24.5mi / 39.2km | |
| Level 2 speed: 11kw | 5.91h | 38.5mi / 61.6km | |

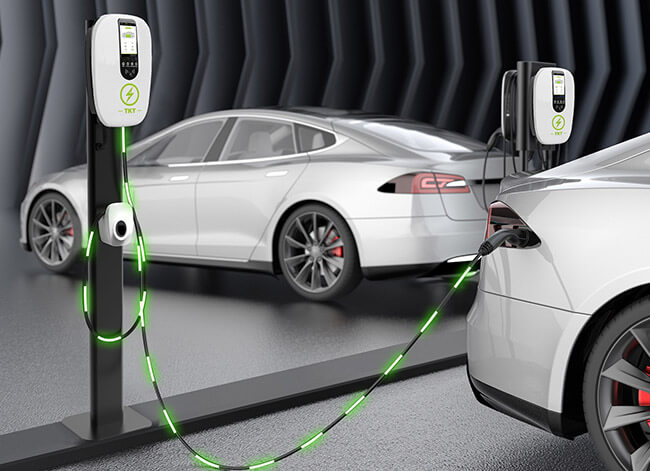

| Level 2 speed: 22kw (Supports 22kw simultaneous charging of 2 cars) |
2.95h | 77mi / 123.2km | |
| Level 3 speed: 180kw Learn More |
22min | 630mi / 1008km |
Note that actual charging time and increased range may vary depending on vehicle charging efficiency, battery temperature and other factors. These figures are based on ideal conditions.

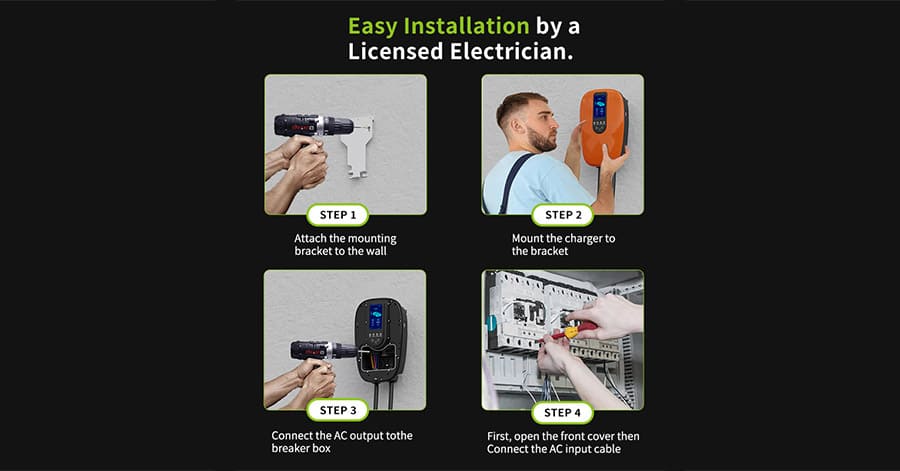

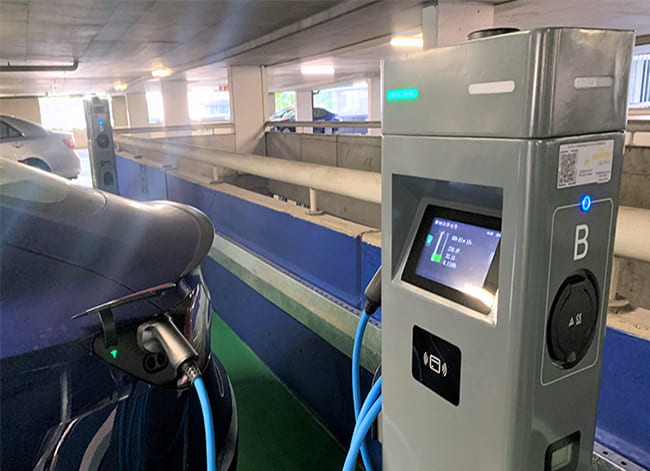

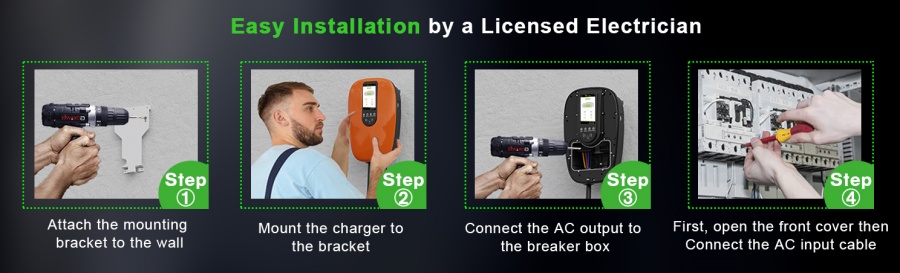

Professional structural engineers design repeatedly to make the product compact and smaller. Under the same area, more equipment can be placed. The input side only needs to be connected to the grid, and the installation is very convenient.

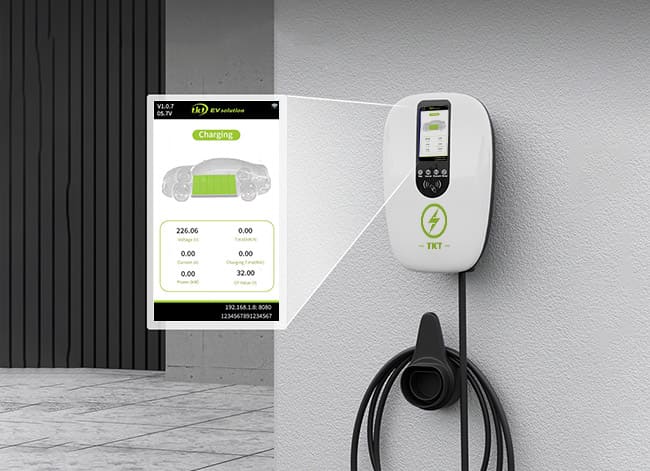

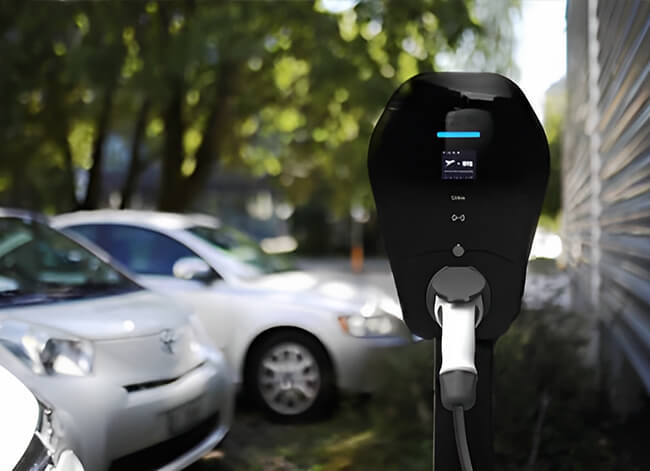

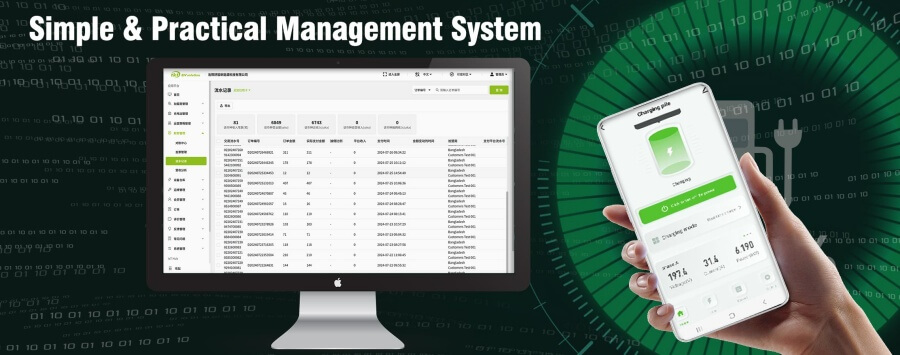

User terminal: color LCD touch screen, supports multiple languages, simple design close to the owner’s use. Multiple payment methods are supported.
Management side: intelligent management, remote monitoring, fast and convenient. Various statistics are clear. Easily connects to any OCPP-based backend.
Supports load balancing and phase rotation functions. It can not only ensure the safe and stable operation of charging equipment, but also optimize the energy utilization efficiency of the power grid. As a leading charging pile manufacturer, it has more than 10 years of technology accumulation, more than 100 patents, supports OEM&ODM, provides white label, customized management system, etc.

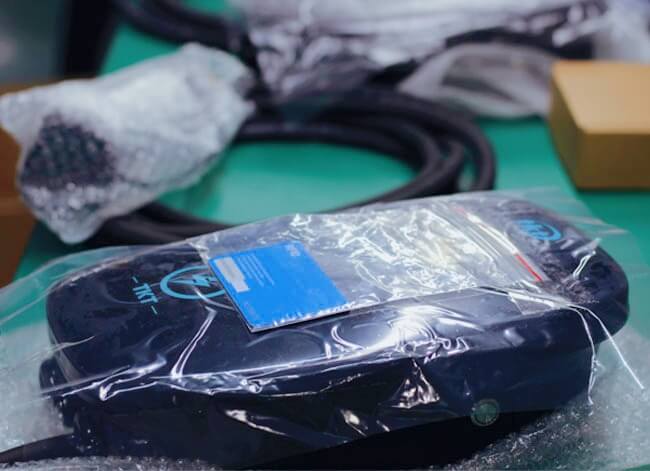

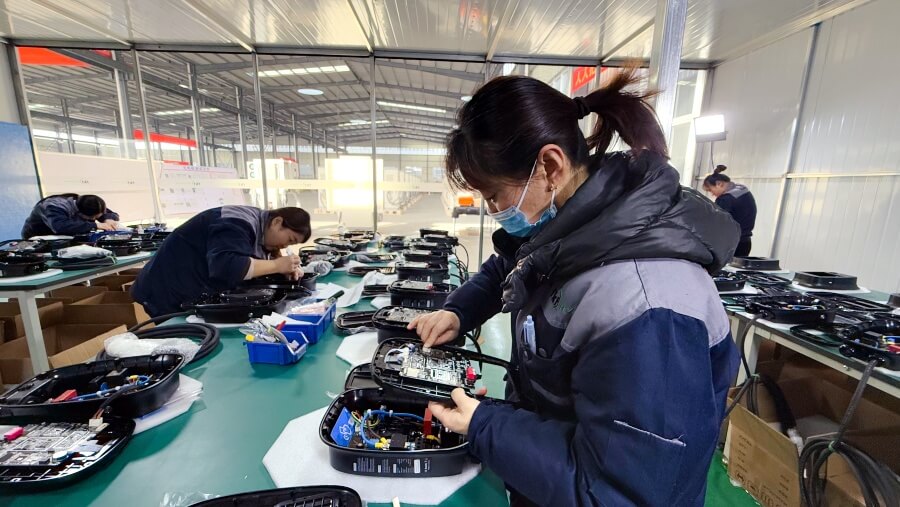

We attach great importance to product quality, and we will conduct up to 16 inspections again before each delivery. These include wiring and routing, insulation resistance checks, circuit breaker and emergency stop function checks, internal power supply DC checks, touch screen checks, thermistor checks, fan function checks, charging history checks, remote communication function checks, and more.
A: You don’t need to worry about this since electric automobile manufacturers have built-in safety systems to prevent damage from frequent use of rapid or fast charging. For example, the rate of charge can be automatically lowered if the car thinks too much power is being supplied to the battery too often.
