AC EV Charger Overview
This AC EV Charger achieve Level 2 charging speeds (7кВт / 11кВт / 22кВт). This allows you to charge your electric vehicle 5 к 7 times faster compared to a Level 1 charger. We have a wide range of product models to choose from, supporting a variety of installation methods.
We have formed long-term and stable cooperative relations with well-known Chinese enterprises such as Yutong Bus, Zhongtong Bus, BYD Automobile, and Ningde Times. На международном рынке, we have formed long-term and stable cooperation with Taiwan Yuandian Technology, Turkey Lumhouse, India Tata, India BYD, и т. д..
-
-

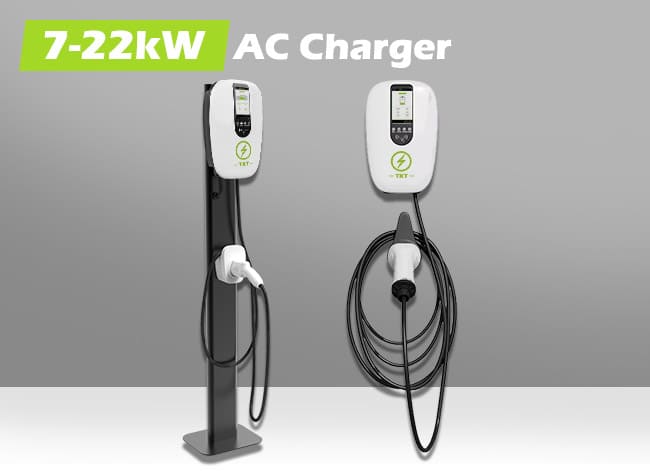

Wallbox
-
-
Floor Stand
AC EV Charger Specification Table
Please feel free to leave a message Электронная почта:md@tkt-hvac.com and let our experts provide you with expert advice. Мы поддерживаем настройку OEM.
| Сертификат |
ИСО9001, ИАТФ16949, ТУВ, CE, IEC61851-1,IEC 62196-2 |
| Charging Interface |
CCS1 Type 1 / CCS2 Type 2 / CHAdeMO Type 1
* 1 или 2 Необязательный |
| Output Rating |
7кВт, 32А |
11кВт, 32А |
22кВт, 32А |
| Эффективность |
≥95% |
| Входное напряжение |
1-phase 230V ±20% |
3-phase 400V ±20% |
| Standby Power |
< 5 Вт |
| Protection Degree |
IP 65 |
Internal Residual
Current Detection |
Dual CE Certified RCCB Type-B (30mA AC, 6mA DC) |
| Over Current Protection |
Dual MCB 50A |
| Lightning Protection |
SPD 40KA |
| Energy Meter |
CE & MID Certified |
| Electrical Protection |
Over current, short circuit, over voltage, under voltage,
ground fault, lightning surge, over temperature |
| Mounting Type |
Wall-Mount or Pole-Mount or Floor-Mount |
| Network Interface |
4г / Wi-Fi / Ethernet |
| OCPP |
OCPP 1.6J & OCPP 2.0 |
| Status Indicators |
Standby (Green),Зарядка (Flashing Green), Fault (Red), Waring (Flash Red) |
| Отображать |
2.8” LCD / 7″ LCD Display |
| User Authentication |
RFID / Applets / Credit Card (необязательный) |
| Buttons/Switches |
Physical button for charging connector selection, and also output current adjustment |
| Operating Temperature |
(-30℃ to +55℃) in operation, (-40℃ to +80℃) in storage |
| Язык |
Китайский, Английский, Русский, Другие языки поддерживают настройку |
TKT AC EV Charger Advantages
1. Pay attention to safety: safety first
Excellent protection system: TKT charging pile has protection functions such as leakage, overload, surge, перенапряжение, undervoltage, short circuit, grounding, overheating, lightning strike, and emergency stop. So many protection functions are only for 100% personal safety. No amount of cost is too much.
Strong and durable shell: TKT adopts a combined process of galvanized sheet + multi-layer spraying process + first-level sealing. The equipment can reach IP54/IP55 protection level, moisture-proof, mildew-proof, rain-proof, rust-proof, dust-proof, and flame-retardant. The multi-layer coating process adopts anti-ultraviolet treatment to inhibit the aging of the cabinet and ensure a longer life cycle of the product.
-
-
Versatile
-
-
IP65
2. Уровень 2 скорость зарядки
We have rich and professional technology accumulation. The AC charging pile product series all reach level 2 charging and charging, with optional output power of 7kW/11kW/22kW. If there are special needs, we support customization.
Чтобы более интуитивно чувствовать скорость зарядки. я сделал форму. В качестве примера я буду использовать 65 кВтч.. (If you can’t calculate, наши специалисты могут помочь, пожалуйста, свяжитесь со специалистами)
| Емкость аккумулятора электромобиля |
Скорость зарядки |
Общее время полной зарядки |
Среднее количество миль в час |
| 65кВтч |
Уровень 1 скорость: 3кВт |
21.67час |
10.5ми / 16.8км |
| Уровень 2 скорость: 7кВт |
9.29час |
24.5ми / 39.2км |
| Уровень 2 скорость: 11кВт |
5.91час |
38.5ми / 61.6км |
Уровень 2 скорость: 22кВт
(Supports 22kw simultaneous charging of 2 cars) |
2.95час |
77ми / 123.2км |
Уровень 3 скорость: 180кВт
Узнать больше |
22мин |
630ми / 1008км |
Note that actual charging time and increased range may vary depending on vehicle charging efficiency, battery temperature and other factors. These figures are based on ideal conditions.

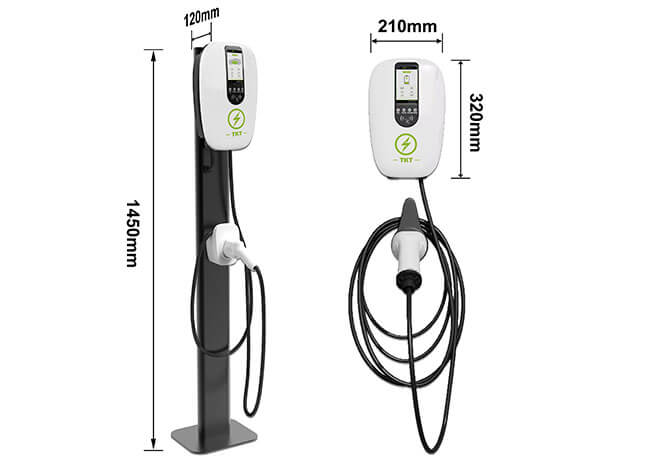

3. Small and easy to install
Professional structural engineers design repeatedly to make the product compact and smaller. Under the same area, more equipment can be placed. The input side only needs to be connected to the grid, and the installation is very convenient.
4. Простая и практичная система управления
Пользовательский терминал: цветной сенсорный ЖК-экран, поддерживает несколько языков, simple design close to the owner’s use. Поддерживаются несколько способов оплаты.
Сторона управления: интеллектуальное управление, удаленное наблюдение, быстро и удобно. Различная статистика понятна. Легко подключается к любому серверу на базе OCPP..
5. Intelligent charging system
Supports load balancing and phase rotation functions. It can not only ensure the safe and stable operation of charging equipment, but also optimize the energy utilization efficiency of the power grid. As a leading charging pile manufacturer, у него больше, чем 10 годы накопления технологий, больше, чем 100 патенты, поддерживает OEM&ОДМ, предоставляет белую этикетку, настраиваемая система управления, и т. д..

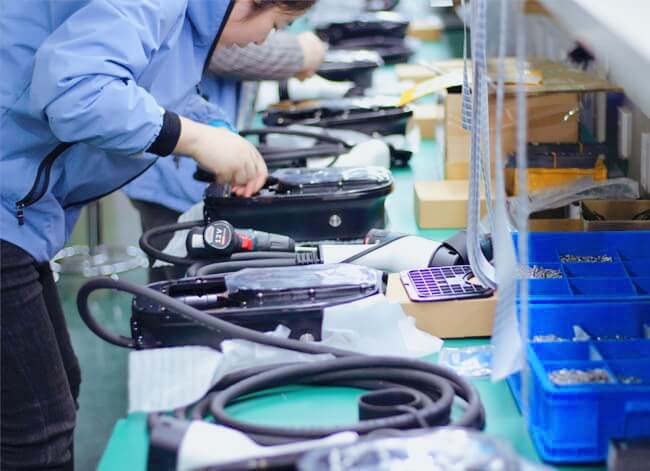

Строгий предпродажный контроль
Мы придаем большое значение качеству продукции, и мы проведем до 16 inspections again before each delivery. These include wiring and routing, insulation resistance checks, circuit breaker and emergency stop function checks, internal power supply DC checks, touch screen checks, thermistor checks, fan function checks, charging history checks, remote communication function checks, и многое другое.
