โซลูชันการชาร์จรถบัสไฟฟ้า

Creating an Efficient and Reliable Solution for Electric Bus Charging

TKT electric bus charging stations have been developed, designed, and manufactured since 2014. We have extensive OEM experience. Our smart, fast charging systems are designed to meet the needs of public transport fleets, including providing OEM customization. ตอนนี้, we are working with some of the world’s top 500 customers such as BYD and TATA motors.

Electric buses, as a mode of public transportation, are usually required to operate around the clock. High passenger capacity, frequent starting and stopping, and energy consumption of auxiliary equipment such as air conditioners result in much higher power consumption than ordinary electric vehicles. ดังนั้น, they are usually equipped with a larger battery capacity, which reduces the number of recharging times. They are also usually equipped with faster charging speeds to ensure continuous operation.

For all these reasons, we have designed this electric bus charging solution: 120~240kW. It has two charging ports and can charge two electric buses at the same time, which can increase the utilization rate. ประการที่สอง, it has a very fast charging speed, which can significantly reduce the charging dwell time of electric buses.

120-240 สถานีชาร์จเร็ว kW DC (Click for details)

One Hour Charging Adds About 240-480 กม:

Electric buses generally consume between 56 และ 60 กิโลวัตต์ชั่วโมงไฟฟ้าต่อ 100 kilometers. If a 120kW charger is used to charge an electric bus, theoretically, 120 kWh of electricity can be charged per hour. The range of the electric bus is then approximately 240 kilometers. It should be noted that the actual charging efficiency and range may be affected by a number of factors, such as the efficiency of the charger, ambient temperature, vehicle load, ฯลฯ. The above calculations are for reference only.

If a 120kw electric bus charging station charges two electric buses at the same time, the charging power of each vehicle will become 60kw.

Contact Us Get PDF

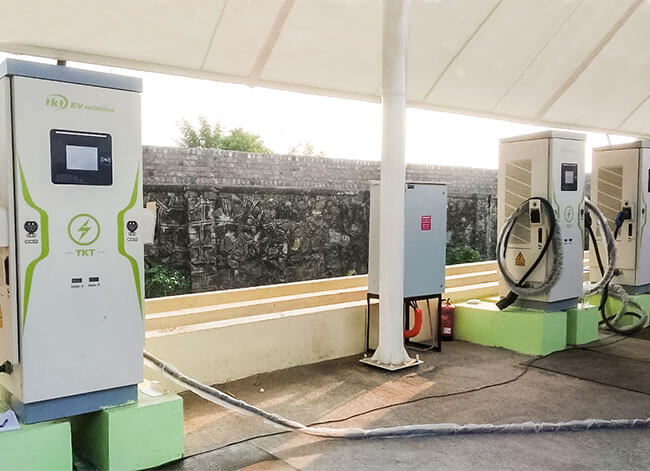

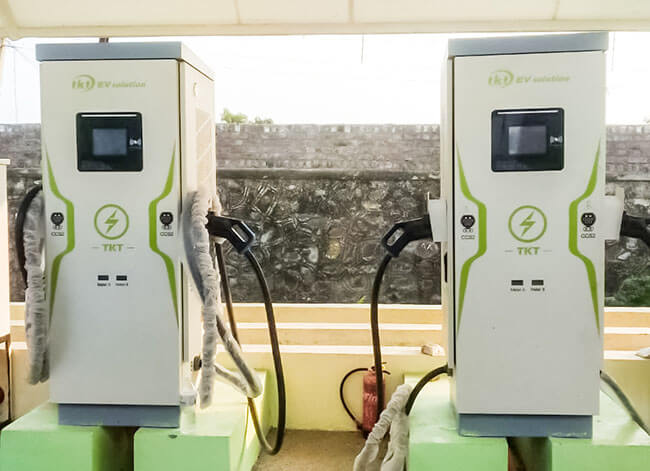

Electric Bus Charging Solution Project

โครงการนี้เป็นความร่วมมือของเรากับ BYD-Olectra, ผู้ผลิตรถบัสไฟฟ้าชั้นนำของอินเดีย. จำนวนเครื่องชาร์จรถยนต์ไฟฟ้าแบบเร็วมีเกินร้อยเครื่องในชุดแรกแล้ว.

เป็นหัวหน้าวิศวกรไฟฟ้า, นาย. Dinesh เป็นผู้นำการก่อสร้างและบำรุงรักษาโครงสร้างพื้นฐานการชาร์จ. เขากล่าวว่า, “Your electric vehicle chargers played a key role in our project. It has greatly increased the frequency of bus trips.”

About OEM/ODM

Why do you recommend TKT electric bus charging solution?

1. High Charging Power: Meets the need for high-frequency replenishment/reduced charging time

1.1 Advanced power semiconductor materials: TKT chargers use advanced power semiconductor materials such as silicon carbide (SiC) to improve conversion efficiency and reduce energy loss.

1.2 การออกแบบโมดูลาร์: 30kW/40kW high power charging module is adopted as the base. The modular design allows the charger to flexibly expand the charging power according to your needs.

2. High Compatibility: Meet the charging needs of multi-brand buses

2.1 Multi-standard interface design: support CCS2, GBT, and other charging interfaces, compatible with BYD, ยูทง, TATA motors and other brands of buses.

2.2 Automatic recognition of protocol adaptation: Built-in multiple communication protocol stacks automatically recognize the charging protocols of connected electric bus charging. This improves compatibility with a wide range of electric buses and ensures a safe and fast-charging experience.

2.3 More flexible than pantograph charger: not picking the model of electric buses, it is more flexible to be used as and when it comes.

3. Robust and Reliable: Global quality certification to minimize after-sales problems

3.1 Multiple protection mechanisms, including overload protection, ป้องกันการลัดวงจร, ป้องกันการรั่วไหล, over-temperature protection, ฯลฯ, ensure the safe operation of the equipment in various working conditions.

3.2 High-quality components: selected components of famous international brands to ensure product stability and durability.

3.3 Failure self-diagnostic function: real-time monitoring of the state of the equipment, automatic detection and recording of fault information, to facilitate maintenance personnel to quickly locate the problem.

4. Intelligent Management System: Enhancing Operational Efficiency

4.1 Human-computer interaction interface: Equipped with high-definition touch screen, supporting multi-language switching, intuitive operation, and improving user experience.

4.2 Cloud platform management: Provide a cloud-based management platform, support remote monitoring, data analysis, fault diagnosis, and other functions to improve operational efficiency.

5. สนับสนุน & หลังการขาย

TKT มีทีมงานบริการเฉพาะที่ให้การสนับสนุนออนไลน์สำหรับระบบฮาร์ดแวร์และซอฟต์แวร์ของเรา. คุณไม่จำเป็นต้องตื่นตระหนกหากมีปัญหาเกิดขึ้น.

ในฐานะผู้ผลิตเครื่องชาร์จรถยนต์ไฟฟ้าแบบเดิม, TKT ยังจัดให้มีการฝึกอบรมเกี่ยวกับการบำรุงรักษาและการแก้ไขปัญหาอย่างเหมาะสม. This will help extend the life of the electric bus charging station.
