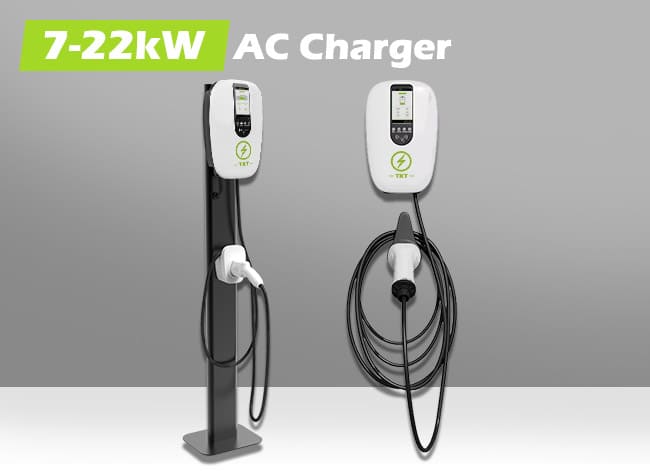

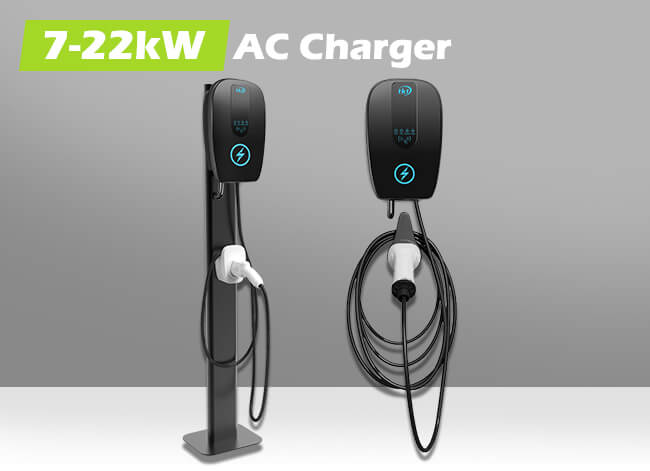

Bu AC EV şarj cihazı, yüksek IP65 koruma seviyesine sahiptir. Duvara monte edilebilir veya tabana monte edilebilir.
Bağlayıcı Standardı: Tip 1 / Tip 2 / CHAdeMO / GBT
İletişim Protokolleri: OCPP1.6J
Kalite Sertifikası: ISO9001, IATF16949, CE, vb..
Başvuru: Yerleşim Alanları, Şirketler, Ticari Yerler, Halka Açık Otoparklar, vesaire.
This AC EV Charger achieve Level 2 charging speeds (7kw / 11kw / 22kw). This allows you to charge your electric vehicle 5 ile 7 times faster compared to a Level 1 charger. We have a wide range of product models to choose from, supporting a variety of installation methods.
We have formed long-term and stable cooperative relations with well-known Chinese enterprises such as Yutong Bus, Zhongtong Bus, BYD Automobile, and Ningde Times. Uluslararası pazarda, we have formed long-term and stable cooperation with Taiwan Yuandian Technology, Turkey Lumhouse, India Tata, India BYD, vesaire.
Please feel free to leave a message E-posta:md@tkt-hvac.com and let our experts provide you with expert advice. OEM özelleştirmesini destekliyoruz.
Sertifika | ISO9001, IATF16949, TUV, CE, IEC61851-1,IEC 62196-2 | ||
Charging Interface | CCS1 Type 1 / CCS2 Type 2 / CHAdeMO Type 1 * 1 veya 2 İsteğe bağlı |
||
Output Rating | 7kW, 32A | 11kW, 32A | 22kW, 32A |
Yeterlik | ≥95% | ||
Giriş gerilimi | 1-phase 230V ±20% | 3-phase 400V ±20% | |
Standby Power | < 5 K | ||
Protection Degree | IP 65 | ||
Internal Residual Current Detection |
Dual CE Certified RCCB Type-B (30mA AC, 6mA DC) | ||
Over Current Protection | Dual MCB 50A | ||
Lightning Protection | SPD 40KA | ||
Energy Meter | CE & MID Certified | ||
Electrical Protection | Over current, short circuit, over voltage, under voltage, ground fault, lightning surge, over temperature |
||

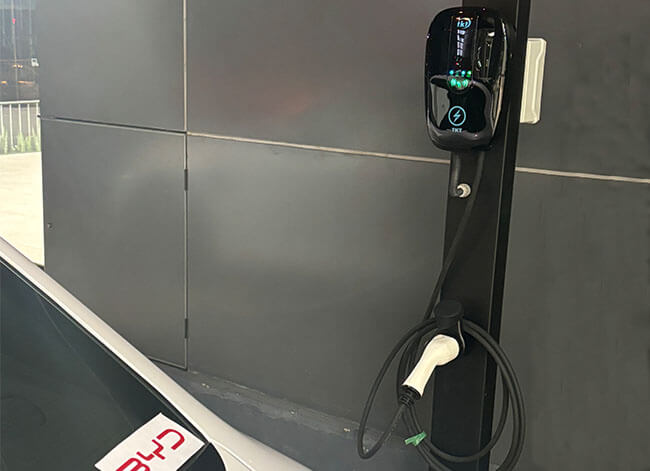

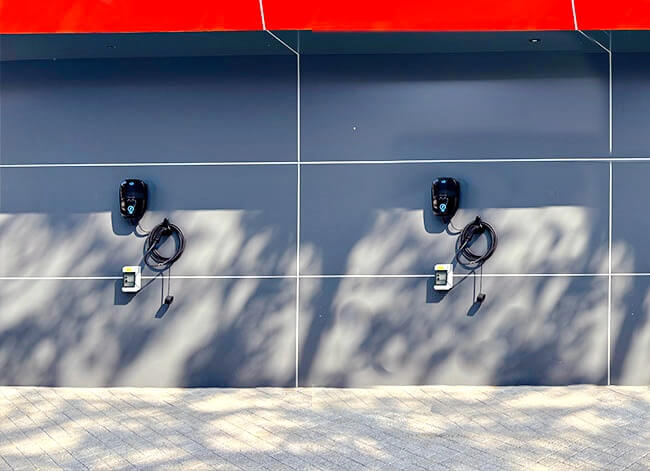

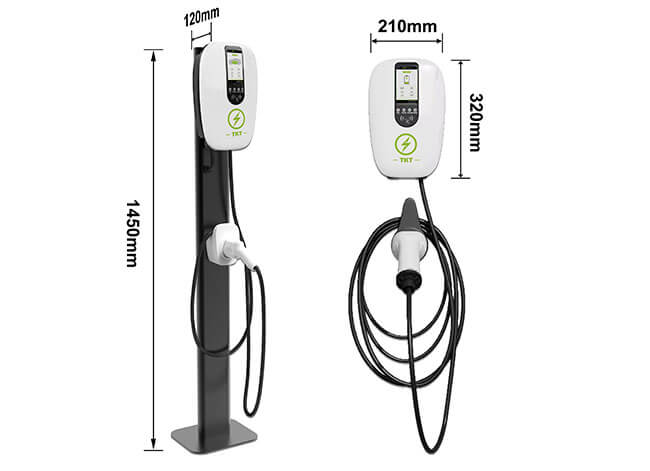

Mounting Type | Wall-Mount or Pole-Mount or Floor-Mount | ||
Network Interface | 4G / Wi-Fi / ethernet | ||
OCPP | OCPP 1.6J & OCPP 2.0 | ||
Status Indicators | Standby (Green),Şarj etme (Flashing Green), Fault (Red), Waring (Flash Red) | ||
Görüntülemek | 2.8” LCD / 7″ LCD Display | ||
User Authentication | RFID / Applets / Credit Card (isteğe bağlı) | ||
Buttons/Switches | Physical button for charging connector selection, and also output current adjustment | ||
Operating Temperature | (-30℃ to +55℃) in operation, (-40℃ to +80℃) in storage | ||
Dil | Çince, İngilizce, Rusça, Diğer diller özelleştirmeyi destekler |
Excellent protection system: TKT charging pile has protection functions such as leakage, overload, surge, aşırı gerilim, undervoltage, short circuit, grounding, overheating, lightning strike, and emergency stop. So many protection functions are only for 100% personal safety. No amount of cost is too much.
Strong and durable shell: TKT adopts a combined process of galvanized sheet + multi-layer spraying process + first-level sealing. The equipment can reach IP54/IP55 protection level, moisture-proof, mildew-proof, rain-proof, rust-proof, dust-proof, and flame-retardant. The multi-layer coating process adopts anti-ultraviolet treatment to inhibit the aging of the cabinet and ensure a longer life cycle of the product.
We have rich and professional technology accumulation. The AC charging pile product series all reach level 2 charging and charging, with optional output power of 7kW/11kW/22kW. If there are special needs, we support customization.
Şarj hızını daha sezgisel olarak hissetmek için. Formu yaptım. Örnek olarak 65kwh kullanacağım. (If you can’t calculate, uzmanlarımız yardımcı olabilir, lütfen uzmanlarla iletişime geçin)
Elektrikli Araç Akü Kapasitesi | Şarj Hızı | Tamamen Şarj Olmak İçin Toplam Süre | Saatte Kazanılan Ortalama Mil |
65kwh | Seviye 1 hız: 3kw | 21.67H | 10.5mi / 16.8kilometre |
Seviye 2 hız: 7kw | 9.29H | 24.5mi / 39.2kilometre | |
Seviye 2 hız: 11kw | 5.91H | 38.5mi / 61.6kilometre | |
Seviye 2 hız: 22kw (Supports 22kw simultaneous charging of 2 cars) |
2.95H | 77mi / 123.2kilometre | |
Seviye 3 hız: 180kw Daha fazla bilgi edin |
22dk. | 630mi / 1008kilometre |
Note that actual charging time and increased range may vary depending on vehicle charging efficiency, battery temperature and other factors. These figures are based on ideal conditions.
Professional structural engineers design repeatedly to make the product compact and smaller. Under the same area, more equipment can be placed. The input side only needs to be connected to the grid, and the installation is very convenient.
Kullanıcı terminali: renkli LCD dokunmatik ekran, birden fazla dili destekler, simple design close to the owner’s use. Birden fazla ödeme yöntemi desteklenir.
Yönetim tarafı: akıllı yönetim, uzaktan gözlemleme, hızlı ve kullanışlı. Çeşitli istatistikler açıktır. Herhangi bir OCPP tabanlı arka uca kolayca bağlanır.
Supports load balancing and phase rotation functions. It can not only ensure the safe and stable operation of charging equipment, but also optimize the energy utilization efficiency of the power grid. As a leading charging pile manufacturer, ondan daha fazlası var 10 yılların teknoloji birikimi, bundan fazla 100 patentler, OEM'i destekler&ODM, beyaz etiket sağlar, özelleştirilmiş yönetim sistemi, vesaire.

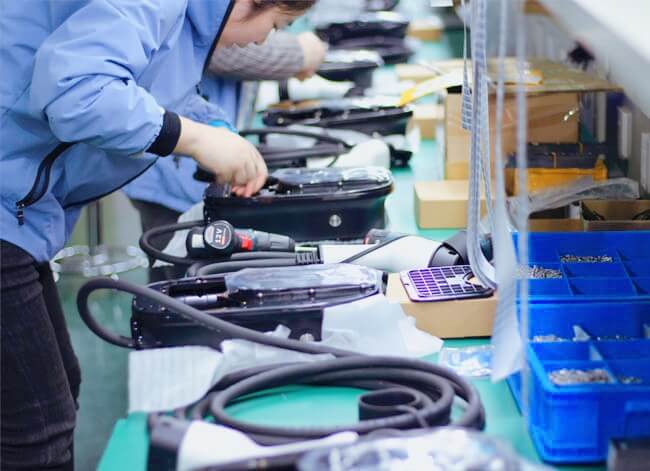

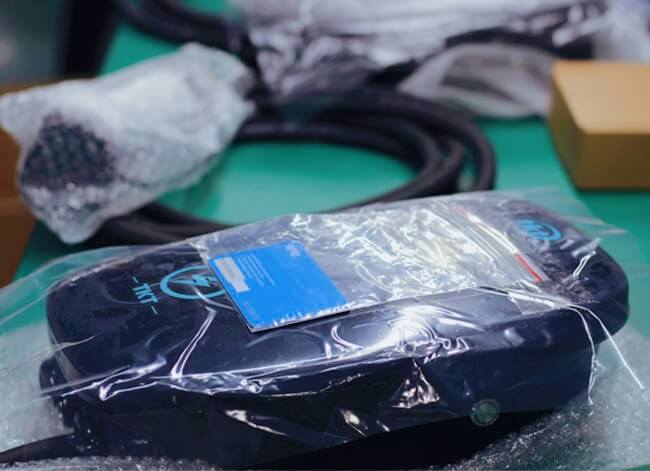

We attach great importance to product quality, and we will conduct up to 16 inspections again before each delivery. These include wiring and routing, insulation resistance checks, circuit breaker and emergency stop function checks, internal power supply DC checks, touch screen checks, thermistor checks, fan function checks, charging history checks, remote communication function checks, and more.
A: You don’t need to worry about this since electric automobile manufacturers have built-in safety systems to prevent damage from frequent use of rapid or fast charging. Örneğin, the rate of charge can be automatically lowered if the car thinks too much power is being supplied to the battery too often.
