✲ Customized: Dimension/ Cooling/ Heating etc.
✲ Dünyanın En İyisi 500 BYD/ TATA Supplier
✲ Over 200,000 dünya çapında faaliyet gösteren üniteler
✲ 10 Years of Experience in R&D and Design
✲ Sertifikalar: ISO 9001, IATF 16949, vesaire.
Başvuru: Battery Thermal Management System for Bus / Kamyon / Heavy Equipment / boat etc.
The optimal operating temperature of the EV battery is 20° to 45°. Bu sıcaklık aşılırsa, sürüş menzili ve pil ömrü önemli ölçüde düşecek. Daha ne, aynı zamanda çevredeki ekipmanı da etkileyebilir ve yanma ve patlama gibi sonuçlara yol açabilir. Pil bu sıcaklığın altındaysa, elektrokimyasal reaksiyon aktivitesi zayıflayacak ve pilin performansı büyük ölçüde düşecek.
Battery thermal management system is a system specially designed to cool down power batteries. It is an indispensable component of commercial electric vehicles. TKT battery cooling system adopts liquid cooling and PTC for heating, which can steadily take away a large amount of heat generated by the battery. This is the most commonly used battery cooling method for electric buses, elektrikli kamyonlar, elektrikli ağır ekipman, and electric boats.
TKT battery thermal management system has a wide range of solutions. The cooling capacity is from 3-10kw and the mounting positions are top mounted and side mounted. There is also the latest BTMS integrated system for bus air conditioning, which is an integrated solution for electric buses. TKT also supports OEM customization service. We can solve 99% of different customers’ needs.
Click to learn more about the principle
▲More than 10 years of market proof, üzerinde 200,000 dünya çapında faaliyet gösteren üniteler, with quality and performance widely recognized worldwide.
▲Patent Design to make higher cooling/heating with less weight;
▲Bigger Coolant flow to maintain battery temperature in shortest temperature;
▲Pil paketine zarar verecek yanlış işlemi önlemek için CAN Kontrolü (Runs automatically to keep battery temperature stable);
▲IP67 elektrikli parçaları benimseyin, elektrikli kompresör gibi, Su Pompası, konnektörler vb;
▲Fast OEM/Customized Design (1 month);
▲Hassas Sıcaklık Kontrolü (0.5 Sen.C);
Geçmişte 10 yıllar, TKT HVAC has developed rapidly and has become the top 3 battery thermal management system manufacturers in China. With rich OEM experience, we have cooperated with many world-famous vehicle manufacturers. Such as BYD, TATA motos, Mobiliteyi değiştir, Daewoo, vesaire. The cooperative projects include a variety of electric bus battery thermal management system, light truck battery thermal management system, heavy truck battery thermal management system, vesaire.
“EV Battery Thermal Management Case Study – A Customized Story for Fortune 500” Okumak için tıklayın (highly recommended)

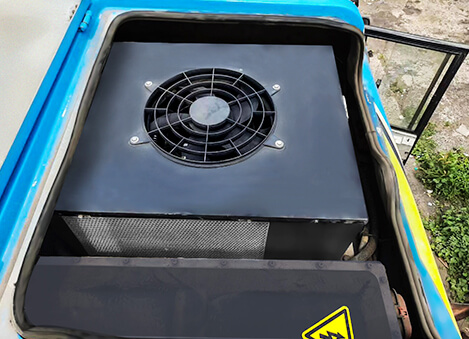

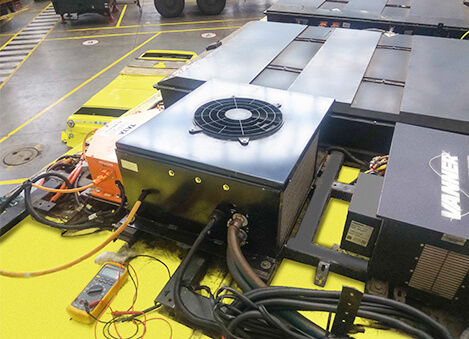

Real vehicle test, stable operation (Büyütmek için resmin üzerine tıklayın)
Bize Ulaşın profesyonel model tavsiyesi için. Ek olarak, TKT provides OEM customization services, and vehicle manufacturers are welcome to consult.
| Destek Özelleştirilmiş Services |
 |
 |
| Kapasite | Soğutma: 8-10KW Isıtma: 6-10KW (İsteğe bağlı) |
Soğutma: 5-6KW Isıtma: 3KW (İsteğe bağlı) |
| Başvuru | 11-12M Electric Bus BTMS (DC240V-DC750V) |
8-10M Electric Bus BTMS (DC240V-DC750V) |
| Ürün Modeli |
10R/10CW for EBus View Page 10R/10CW |
5R/5CW for EBus View Page 5R/5CW |
| Destek Özelleştirilmiş Services |
 |
 |
| Kapasite | Soğutma: 3-4KW Isıtma: 1-2KW (İsteğe bağlı) |
Soğutma: 5-6KW Isıtma: 3KW (İsteğe bağlı) |
| Başvuru | 6-7M Electric Bus BTMS (DC240V-DC750V) |
Elektrikli Kamyon BTMS (DC240V-DC750V) |
| Ürün Modeli |
3R/3CW for EBus View Page 3R/3CW |
5CW for ETruck View Page 5CW |
| Destek Özelleştirilmiş Services |
 |
 |
| Kapasite | Soğutma: 3-4KW Isıtma: 1-2KW (İsteğe bağlı) |
BTMS Cooling: 8KW Bus A/C Cooling: 143K BTU |
| Başvuru | E-Ağır Ekipman BTMS (DC240V-DC750V) |
E-Bus A/C + BTMS (DC240V-DC750V) |
| Ürün Modeli |
3EHE için R View Page 3R |
View Page Integrated System |
Contact us for High Resolution Images
1. Battery type and specifications: Different battery application scenarios have different requirements for battery thermal management system. Örneğin, if it is a power battery and applied to an electric bus, its battery voltage is usually between 280v-750v. When an electric bus is running, the battery produces a lot of heat, which requires a battery liquid cooling system.
2. EV Reserve space: When different vehicle manufacturers design new vehicles, the design space of each part is planned. Örneğin, because electric trucks have boxes, we usually recommend designing the truck battery thermal management system (BTMS) on the outside of the truck and adopting a side-mounted installation solution. The advantage of this is that it is conducive to the release of heat dissipation performance and the battery cooling efficiency is high. Elbette, we also have other truck battery cooling solutions that can solve 95% of truck battery cooling needs. For another example, the overall space of electric heavy machinery is small, so there are strict requirements on the size of the battery thermal management system. We have split battery cooling solutions and also provide customized services, so we can perfectly solve the needs of battery thermal management system of different sizes.
3. Quality and reliability: The battery thermal management system (BTMS) is very important for electric vehicles. It can not only ensure vehicle safety but also reduce vehicle operating costs. A high-quality cooling system can greatly improve battery life and vehicle range, thereby reducing battery replacement costs and vehicle charging costs. Therefore it is very important to choose a good battery thermal management system. TKT BTMS products have been supplied to Fortune 500 şirketler, passed their strict inspections, and have been in actual vehicle operation for more than 5 yıllar. Only practice can tell whether a product is good or not. Five years of stable operation is the best proof. TKT has rich experience in cooperation with OEM vehicle manufacturers, örneğin BYD project, TATA motors project, Switch mobility project, vesaire.
Yoğunlaştırıcı bobin, kondenser fanı, su tankı, Su Pompası, ısı değiştirici, elektrikli kompresör, kontrol Paneli, CAN modülü, genişleme subabı, vesaire.
The condenser system cools down the coolant and the water pump will run the coolant through the BTMS and the battery structure system to release the heat generated by the battery pack.
Battery thermal management system is mainly divided into battery air cooling, pil sıvı soğutma, phase change material cooling, and battery immersion cooling. Different cooling methods need to be selected based on scenario judgment. For commercial electric vehicles, because the battery capacity of electric vehicles is relatively large, they are all high-voltage power batteries, so they release a lot of heat. Now the most cost-effective and stable program is battery liquid cooling.
The function of the battery thermal management system is to adjust the temperature of the battery in real time and maintain the battery operating within the optimal temperature range to ensure battery performance, life and safety. Mainly speaking, it is divided into the following situations.
1. Prevent overheating: When the battery temperature is too high, the battery performance will be affected and may even malfunction. The battery thermal management system can reduce the battery temperature in time through heat dissipation and other methods to prevent the battery from overheating.
2. Prevent overcooling: In low-temperature environments, battery performance will also be affected and may even fail to work properly. The battery thermal management system can promptly increase the battery temperature through heating and other methods to prevent the battery from overcooling.
3. Maintain battery temperature stability: During vehicle driving, the battery temperature will continue to change. If the temperature fluctuation is too large, it will have a negative impact on battery performance. The battery thermal management system can keep the battery temperature stable by controlling coolant flow and other methods.
4. Improve battery life: By controlling the battery temperature within the optimal range, the battery life can be extended. Reduce the number of replacements and reduce maintenance costs.
Battery cooling technology is more demanding for the design of electric buses and electric trucks, which TKT has been working on since 2012.
Akü sayısını artırmadan sürüş menzilini iyileştirmenin en etkili çözümü, özel akü termal yönetim sistemidir..
EV Akü Termal Yönetim Kutusu – Fortune için özelleştirilmiş 500. TKT'nin BTMS'si var 10 yıllık tasarım deneyimi.
